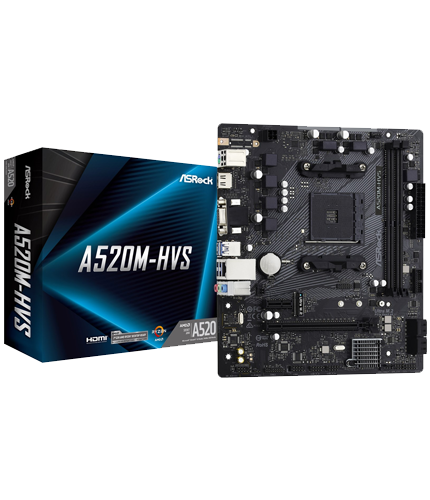

ASRock A520M-HVS Micro ATX AM4 Motherboard with DDR4, VGA, HDMI & M.2
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Super Alloy Motherboard
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Technical Specifications
| CPU | AMD Socket AM4 |
| Chipset | AMD A520 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 |
| Onboard Graphics Outputs | 1 x HDMI port 1 x DP |
| PCI Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Networking | Realtek RTL8111H |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
| Connectivity | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal Ports | 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| EAN | 4710483932311 |
