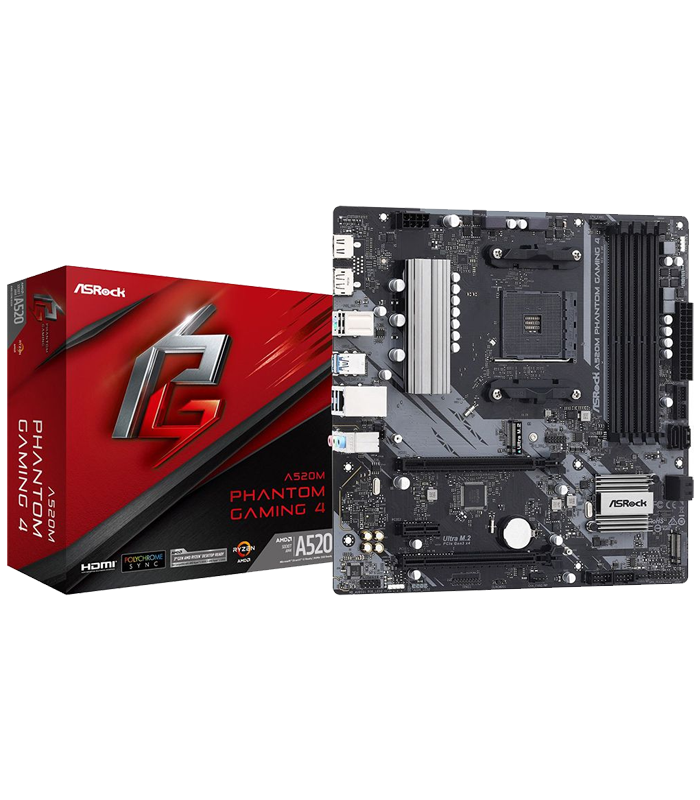

Asrock A520M PHANTOM GAMING 4, AM4, mATX, 4xDDR4, HDMI/DP
ASRock Phantom Gaming – Built by gamers, for gamers, with premium features for performance and style.
- 8 Power Phase Design – Smooth power delivery for stable CPU performance.
- 50A Power Choke – Enhanced Vcore voltage for improved efficiency.
- AMD Smart Access Memory – Unlock full GPU memory for better performance.
- Dual M.2 Slots – Ultra-fast PCIe Gen3 x4 and PCIe Gen3 x2/SATA3 support.
- 2oz Copper PCB – Better cooling, efficiency, and overclocking stability.
- Polychrome RGB – Sync RGB lighting with compatible devices.
- Dual Graphics Outputs – HDMI + DisplayPort, supporting 4K @ 60Hz.
- AMD StoreMI Technology – Combines SSD speed with HDD capacity.
- Super Alloy Design – Sapphire Black PCB, high-density glass fabric, and full spike protection.
- Live Update & APP Shop – Keep your system optimized and up to date.
Technical Specifications
| CPU Socket | Socket AM4 |
| Chipset | AMD A520 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Onboard Graphics Outputs | 1 x HDMI port 1 x DP |
| PCI Slots | 2 x PCI Express 3.0 x16 (@ x16/x2) 1 x PCI Express 3.0 x1 |
| Storage | 2 x M.2, Socket 3, M Key (Type 2280), 4 x SATA III |
| Networking | 1 x Ethernet |
| Audio | Realtek ALC 887/897 |
| Rear Panel I/O Ports | 4 x USB 3.0, 2 x USB 2.0, 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x RJ-45 |
| Internal Ports | 4 x SATA III, 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports), 1 x Speaker header, 1 x CPU fan header, 3 x Chassis/Water Pump fan headers, 1 x SPI TPM header, 2 x M.2, Socket 3, M Key (Type 2280), 2 x 3-pin ARGB LED headers, 2 x 4-pin RGB LED headers |
| Form Factor | MicroATX Motherboard |
| EAN | 4710483932915 |
