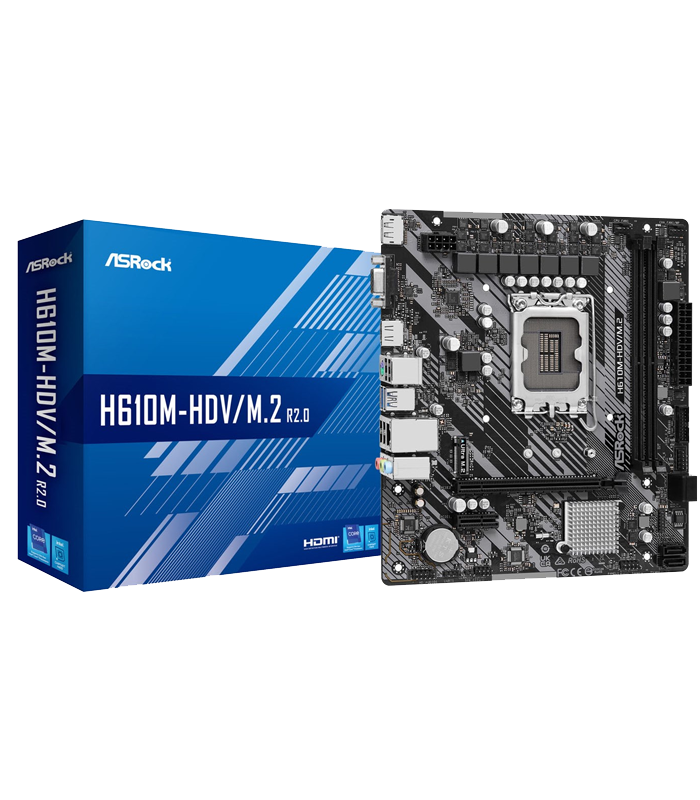

ASRock H610M-HDV/M.2 R2.0 Micro ATX DDR4 Motherboard
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Technical Specifications
| CPU | Socket 1700 |
| Chipset | Intel H610 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 upto 3200MHz |
| Onboard Graphics Outputs | 1 x VGA 1 x HDMI 1 x DisplayPort |
| PCI Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 3x1 |
| Storage | 1 x M.2 |
| Networking | 1 x Realtek RTL8111H |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Connectivity | 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks |
| Internal Ports | 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 1 x USB 2.0 1 x USB 3.2 Gen1 |
| Form Factor | Micro ATX |
| EAN | 4710483939860 |
