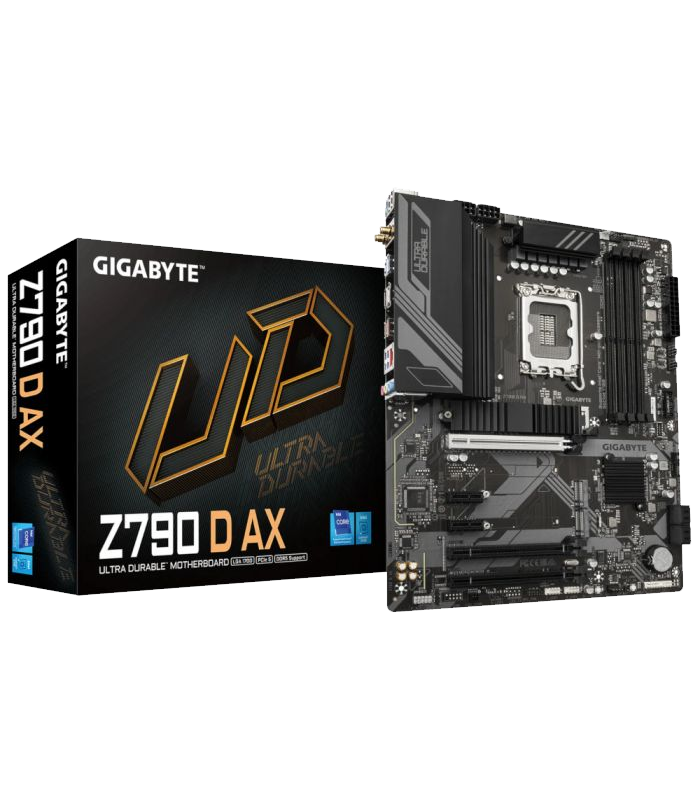

Gigabyte Z790 D AX ATX Motherboard for Intel LGA1700 CPUs
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Main Features
Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11a
Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specifications
| CPU Socket | Intel LGA1700 |
| Chipset | Intel Z790 Express |
| CPU Compatibility | 14th/13th/12th Gen Intel Core, Pentium, Celeron |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Memory Support | 4x DDR5, up to 192GB, DDR5-7600+ (OC) |
| Storage | 3x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 3x PCIe 3.0 |
| Wireless | Wi-Fi 6E AX211, Bluetooth 5.3 |
| Ethernet | Realtek 2.5GbE |
| USB Ports | 2x USB-C, 7x USB 3.2, 6x USB 2.0 |
| Display Outputs | HDMI 4K@60Hz, DisplayPort 4K@60Hz |
| Audio | Realtek HD Audio, 7.1 Channel |
| EAN | 4719331860592 |
